ISO 14229 Compliant UDS Protocol Stack for Vehicle Diagnostics

ISO 14229 UDS Protocol: Accelerating Vehicle Diagnostics Implementation

Every vehicle ECU must be equipped with reliable diagnostics feature so that every fault is stored and reported. Unified Diagnostics Services commonly referred to as UDS protocol, is a unified diagnostics services that has emerged as the de-facto vehicle diagnostics protocol.

UDS protocol is defined in ISO 14229-1 standard. By combining several diagnostic services, it enables diagnostics communication between a vehicle ECU and an external diagnostics device. Almost every OEM in current times, utilize UDS to empower vehicle diagnostics for their production programs.

Ready-to-Deploy UDS Protocol Stack: Putting Vehicle Diagnostics in Fast Lane

Embitel offers ready-to-integrate UDS protocol stacks to expedite the vehicle diagnostics functionality.

UDS Protocol Software License Model

We offer our industry recognized UDS protocol software under a one-time licensing fee model.
Terms & conditions regarding IP rights and source code ownership of UDS protocol software are completely transparent and fully aligned with the customer’s requirements and vision.

Customized UDS protocol stack (ISO 14229) as per diagnostics requirement

Custom Development of UDS software for both Server ( ECU) and Client (diagnostic tester)
Development of ISO-TP (ISO15765) stack to support multi-frame communication
Configuration of UDS Protocol stack, using our proprietary Qt based tooling solution

Development of Tooling solutions for UDS protocol software

Unified Diagnostic Service powered tool for ECU diagnostics at service stations
UDS powered Remote Vehicle Diagnostics
End of line ECU reprogramming tool
Fault Code Memory (FCM) Configuration
Support for Telematics tool development based on UDS

Integration & maintenance of UDS protocol software

UDS protocol software integration with hardware platform and platform software (integration of CAN, timer, scheduler etc.)
UDS stack configuration of messages, diagnostic services and more.
Data Identifier (DID) Configuration based on customer requirement

ODX Tool for UDS configuration

Generation of ODX file from the diagnostics specifications
UDS configuration source code generation using ODX file
Expertise in tools for ODX file generation & UDS configuration such as CANdela and GenY

UDS based Bootloader development

Development of UDS based bootloader
Implementation of Seed and Key algorithm for secure bootloader development
Customization of bootloader software sequence
CAPL Script development to support UDS based ECU reprogramming

UDS protocol testing and documentation

Test reports for Unit, Integration and Functional testing of UDS protocol
Creation of High-Level design document (HLDD) and low-level design document (LLDD)
Design of Module Test Plan , Integration Test Plan, and Functional Test Plan

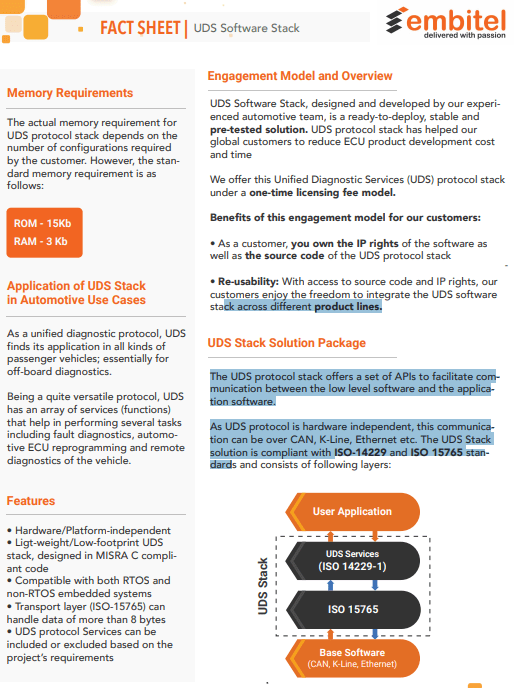

Unified Diagnostic Services (UDS) Factsheet: Know more about Technical Specifications and Solution Package

This UDS protocol factsheet is designed to give you all the necessary information related to memory specifications, UDS solution package and UDS software integration and support services. Download this UDS protocol stack hand-book to also know about:

Please refer to UDS software stack FAQ’s for more details.

Customer FAQs About end-of-line testing, MISRA C Code & Flash Bootloader

What is UDS protocol software stack?

Ans. UDS protocol is a standard defined in ISO 14229 document. The UDS protocol specifications are independent of physical layer and commonly used over CAN, LIN, Flexray and Ethernet physical layers.

The UDS protocol stack is an ISO 14229 compliant software solution. This UDS software stack is best suited for automotive ECU and tooling applications in Passenger Cars.

Which software layer services are part of the UDS stack solution offered by Embitel?

Ans. Our UDS software stack can be customised to include UDS services defined as per the ISO 14229 standard. In addition to these services, our UDS protocol solution includes:

Diagnostic over CAN (as per ISO15765)
Diagnostic over LIN (as per LINTP)
Diagnostics over IP (DoIP).

The following SIDs/services are included in our UDS stack solution as a standard software package. Additional Unified diagnostic services can be included as per your project requirements.

What kind of support can your team provide w.r.t ODX?

Ans. We can help you generate the ODX file from the specifications provided by either by your team or your customer’s team (OEM).

Our Automotive software team has expertise in tools like CANdela and equivalent.

Also, we can support for generation of UDS Protocol configuration file based on the ODX file. We have developed a proprietary ODX configuration tool to configure our UDS protocol software as per the ODX file. We call it the ODX AutoConfig tool.

Do you also provide hardware and software integration services for UDS stack?

Ans. As part of the SLA, our software team will work closely with your team to analyse the end-user application. Based on your business requirements, we can provide end-to-end support for the customization and integration of the UDS stack with your hardware platform and software application. To summarize, we will partner with your team to deliver following services along with the stack:

Integration of the UDS stack to your hardware platform
Integration of UDS solution with target application
Development of flash bootloader software based on Unified DIagnostic Services (ISO 14229)
Development of driver modules like CAN, LIN, Ethernet and more
Verification & validation (testing services) of your target application after UDS integration

Do you provide ECU reprogramming module/ bootloader solution as the part of the software stack?

Ans. The services that support the bootloader functionality are already included in the software stack. We also provide additional integration support for ECU reprogramming. This includes the following software development services:

segregating the memory as boot and application area
implementing boot loader logic in both boot and application
CRC checks, Flash driver development and more.

Is there any specific hardware dependency of your UDS protocol stack?

Ans. No, our UDS software solution is hardware independent. We also provide CAN drivers as a part of software package. These are designed to ensure hardware abstraction.

Is the UDS software source code complaint to any specific standard?

Ans. The UDS software stack is complaint with ISO 14229 standard. The software source code is developed using embedded C in compliance with MISRA-C standard.

Across our organisation for software and hardware development, we rigorously also all the quality control best practices as mandated for CMMI level 3 companies.

In order to embed the culture of quality delivery, we have a separate QA team who works closely with the embedded software and hardware development teams to ensure compliance.

Have you integrated the UDS software stack solution before for any of your customers?

Ans. We have more than 11 years of experience and domain expertise in partnering with global automotive OEMs’ and Suppliers.

We have a team of expert automotive software engineers, who have delivered key solutions for integration, end-of-line testing and support for the implementation UDS software stack across multiple platforms.

Do you provide post-production support as a service?

Ans. We have a well-defined support and maintenance process for your post-production requirements.

As per your project requirements and partnership expectations, post-production support will be part of the SLA at the onset of the UDS stack integration project

Ans. Our business model is designed as a one-time licensing offering. This helps our customers to get access to the UDS software IP rights and also the source code.

The IP rights help your business to reuse the software code across multiple projects.

However the business model can be re-framed according to the business needs of the customer and project specifications

Do you provide integration or conformance testing services as per any specific standard?

Ans. Yes, we provide end-of-line testing services after the software stack integration. This ensures complete support from our development team in the production environment.

Our team of expert automotive software engineers has experience of working with global automotive OEMs’ and Suppliers for providing integration and conformance testing in compliance with ISO 11783 standard.

Is your UDS software solution a Server or a Client?

Ans. The UDS stack solution can be implemented either as Server or Client as per your project/application requirement.

We can either integrate it into an automotive control unit as a Server or in an external tool like a scanner or telematics unit as a Client.

UDS Protocol Blogs: Learn about Remote Vehicle Diagnostics and UDS on IP (DoIP)

Knowledge bytes

Unified Diagnostic Services is an off-board vehicle diagnostics protocol used extensively in modern vehicles. It is specified in ISO14229 standard. The UDS protocol is based on standards like KWP 2000, K-Line, ISO15765 etc. and is an amalgamation of all the diagnostics services offered by different protocols.

These vehicle diagnostics services facilitate the communication between an external tester tool and the vehicle ECU (Electronic Control Unit) where the diagnostics services are implemented.

With increased complexity of electronic components in the new age vehicle, occurrence of the faults in in-vehicle control units was an unwanted evil that could not be fully avoided.

To help the automotive mechanic professionals to detect and effectively manage these faults, off-board diagnostics services were introduced

With the help of vehicle diagnostics software services, the tester tool is able to read the faults and also reprogram the ECU in order to rectify the faults, if required.

Before UDS came to prominence, there were other diagnostics protocol such as KWP 2000, ISO 15765 and a few others. However, having different protocols posed a serious compatibility issue between vehicles ECUs procured from different suppliers.

A more standardized and unified diagnostic service was needed and that’s how UDS was developed.

Being a unified diagnostics protocol, an UDS Software Stack can be integrated with automotive control unit irrespective of its hardware/software specifications.

Also UDS has been developed to be capable of performing a more detailed diagnosis of automotive faults as compared to others.

Its extensive list of services (SIDs) like Diagnostic Session Control, ECU Reset, Read/Write Data and many others make UDS stack deployable across any automotive ECUs for diagnostics and data communication applications

Software Services of UDS Protocol Stack, as defined by ISO 14229 Standard

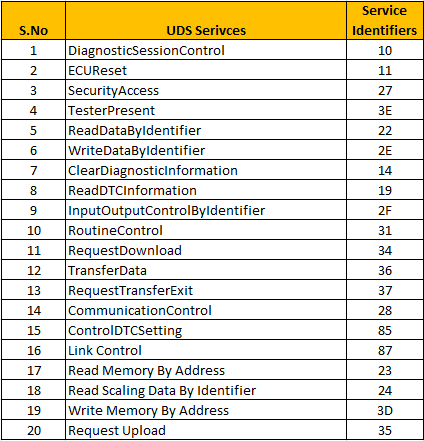

Our UDS protocol stack as a standard software package supports the following services:

SID	UDS SERVICES	DESCRIPTION
0x10	Diagnostic Session Control	Enable various diagnostics sessions within ECU
0x11	ECU Reset	Resetting the ECU to be back in the default session
0x27	Security Access	Limit access to data and services to prevent unauthorized access
0x3E	Tester Present	Alert the ECU(s) that client is still connected so that diagnostic sessions remain active.
0x22	Read Data By Identifier	Request data from ECU(s)
0x2E	Write Data By Identifier	Write data onto ECU(s)
0x14	Clear Diagnostic Information	Clear diagnostic trouble codes (DTC) stored in the ECU
0x19	Read DTC Information	Read DTC from the ECU
0x2F	Input Output Control By Identifier	Control the input/output signals through the diagnostic interface
0x31	Routine Control	Control all the routine services (erasing memory, testing routines etc.)
0x34	Request Download	Request ECU to initiate download session based on request from the tester
0x36	Transfer Data	Manage actual transmission ( upload and download) of data
0x37	Request Transfer Exit	Terminate and exit data transfer
0x28	Communication Control	Manage the exchange of messages in the ECUs
0x85	Control DTC Setting	Enable/disable updating of DTC settings in ECU
0x87	Link Control	Control the ECU- client (tester) communication to gain bus bandwidth for diagnostic purposes.
0x23	Read Memory By Address	Read memory data from the memory address provided
0x24	Read Scaling Data By Identifier	Read scaling data stored in the server using data identifier.
0x3D	Write Memory By Address	Write information into the server memory location
0x35	Request Upload	Request ECU to upload data
