ISO 11783 Compliant ISOBUS
Protocol Software

Ready-to-Integrate ISOBUS protocol software
for Agricultural & Forestry Vehicles

Enabling Plug-n-play Communication Between Vehicle & Implement

ISOBUS protocol is based on CAN Bus and more specifically derived from J1939 standard which is mostly used for ECU communication in heavy vehicles. ISOBUS protocol is implemented in both the agriculture vehicle and the implement to ensure a seamless and standardized communication between them.
ISOBUS Protocol Software

Embitel’s ISOBUS Protocol Software

Our ISOBUS protocol software or stack is a ready to deploy software protocol complaint to ISO 11783 standard.

ISOBUS software stack supports serial data transfer for in-vehicle communication between agricultural tractors and implements.

The stack is an off shoot of SAE J1939 stack design and serves as a communication channel between the Tractor ECU and the implement ECU.

We have deployed ISOBUS protocol software for a number of production programs of our customers.

ISOBUS Protocol (ISO 11783) Integration, Configuration, and Testing Services

Integration of Mobile App

ISOBUS integration consulting

  • Thorough analysis of the vehicle and/or end-user application and requirement gathering workshops with our automotive software consultants.
  • Detailed analysis of customization required for the ISOBUS Task controller, vehicle diagnostic and Implement Message layer as per ISO 11783
Task Controller and Information Management

ISOBUS Task Controller and Information Management Layer Services

  • Configuration of communication SPNs based on Task Controller layer services.
  • Configuration of the Information management layer services to manage communication between the Tractor ECU and the implement control unit
Application Layer Services

Implement Message Application Layer Services

  • Configuration of Rx and Tx messages between ISOBUS stack and application.
  • Scheduling of Rx and Tx messages
  • Logic for Time-out handling
  • Interface design for communication between vehicle application layer and end-user application layer.
Bootloader development

Bootloader development and testing services

  • ISOBUS bootloader software development to facilitate reprogramming of tractor ECU and implement ECU
  • Configuration of the ECU reprogramming sequence as per the vehicle/end-user application requirements
  • Software testing services for ISO11783 complaint ISOBUS bootloader
Development and Configuration

ISOBUS Protocol Diagnostic Layer Services

  • Fault-code memory configurations as per project’s requirements.
  • DM services for active faults, passive faults, and clearing faults, ISO 11783 compliance and ECU re-programming/bootloader operations
Conformance Testing Services

Conformance Testing Services

  • Verification and validation of test cases as per the ISO 11783 standard.
  • Integration testing after the integration of ISOBUS protocol solution with the application.
Send us your Queries

Know more about our OBD2 protocol software business model, features,
use-cases, and technical specifications.

Download ISOBUS protocol factsheet

Powering ECU Communication for Agricultural and Forestry Vehicles

FAQs about ISOBUS Stack Integration

What is ISOBUS Software Stack?

Ans. ISOBUS software stack is a pre-packaged software solution developed in compliance with ISO 11783 standard.

This software stack enables and manages the in-vehicle network communication between the agricultural tractor ECUs and implements ECUs.

In addition to the ISOBUS software stack solution, do you provide any other services?
Ans. We provide detailed analysis for the end-user application prior to the stack integration. Also based on your requirements, we provide ISOBUS protocol integration services. Following is the detailed list of services that we provide as the part of our Service Level Agreement (SLA):
  • ISOBUS software stack integration to with your hardware platform
  • ISOBUS software stack integration with the target application
  • ECU re-programming module/ Bootloader development based on ISO 11783 standard.
  • Low-level driver development to assure compatibility of the stack to your hardware platform.
  • Conformance Testing services as per ISO 11783 standard.
Is there any hardware dependency of your ISOBUS software stack?

Ans. Our ISOBUS software stack is hardware independent. We have developed low-level driver modules to ensure hardware abstraction.

Is the ISOBUS software stack complaint to a specific automotive standard?

Ans. Our ISOBUS stack is complaint to ISO 11783 standard.

Does the ISOBUS software coding convention follow any industry specific guidelines?

Ans. The source code is developed in embedded C in compliance to MISRA-C standards. We adhere to software development and project management best practices as per CMMI level 3 standards at the organization level.

Have you successfully integrated your ISOBUS software stack solution for any of your customer?

Ans. With over 10 years of domain experience of being technology partner with global automotive OEMs and suppliers, we have provided successful stack integration and post-production support for multiple customers across their product lines.We share the specific success stories of our customers only on request after signing the NDA.

Do you provide integration or conformance testing services as per any specific standard?

Ans. We provide end-of-line testing services after the software stack integration. This ensures complete support from our development team in the production environment

Our team of expert automotive software engineers have experience of working with global OEMs’ and Suppliers for providing integration and conformance testing in compliance with ISO 11783 standard.

Can you share the details of your licensing policies?

Ans. We provide one-time licensing to our customers according to our business model. This includes source code for the ISOBUS software stack and IP rights. The IP rights provide the customer flexibility to reuse the software stack across multiple projects.

However, we are also free to the idea of re-framing the business model depending on the client requirement.

Do you provide post-production maintenance and support services?

Ans. Yes. We follow a well planned process of maintenance and support as a part of our SLA. The terms of the SLA depend on the specific project requirements and customer’s expectations.

ISOBUS Protocol Stack Implementation Success Stories

Customer – Stack Configuration and Integration Testing for a European Tier-1 Supplier. Business Challenge – The need to migrate products to ISO 11783 standards became inevitable for our customer (Tier-1 supplier of Agricultural automation products) to ensure compatibility with the agricultural implements. Embitel Solution – After discussions and adequate requirement gathering our Automotive experts designed the following solutions:
  • Off-the-self pre-packaged and pre-tested ISOBUS stack was integrated with minimum modifications.
  • A CAN driver was designed to ensure hardware abstraction for data communication, further making the ISOBUS software stack platform independent.
  • The ISOBUS software stack also included the feature of compatibility with both RTOS and non-RTOS.

For more details refer to ISOBUS software stack Integration Project

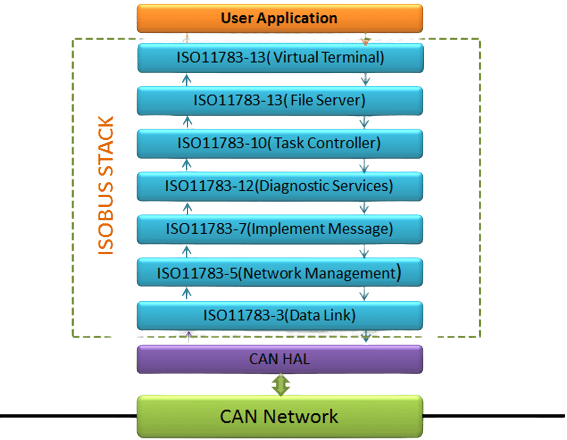

ISOBUS BUS Protocol Stack: Details of the Software Architecture

We have developed an in-house verified and validated stack with Implement message application layer, diagnostic layer and the task controller layer which can be modified according to the requirement of services.

The ISOBUS software stack is implemented with a Hardware Abstraction layer (CAN HAL) which ensures that the stack is hardware independent (Not dependent on CAN) and reusable or easily portable.

  • Data link layer: Data Link layer supports transfer of vehicle CAN data frame with necessary synchronization, sequence control, error code and flow control.
  • Network layer: The network layer defines services required for communication between the Control Functions in different segments of the ISO 11783 network.
  • Network Management layer: This layer is responsible for address claim function.
  • Implement Message Layer: Specified message set from this layer is designed to support the transfer of data from tractor ECU to an implement.
  • ISOBUS Diagnostic layer: The ISOBUS software stack solution supports a data driven diagnostic test system.
  • ISOBUS Task Controller: The layer defines the requirements and services needed for communicating between the task controller (TC) and ECUs.
  • File server: The file server prototype facilitates the communication of large multimedia file and image data files in the ISOBUS architecture.
  • Virtual Terminal (VT): ISOBUS virtual terminal provides the user interface for interaction with the complete system. Control actions can be customized at this layer.
Hardware Abstraction layer
