Battery Management System for Electric Vehicles manages the health of the battery pack installed in automobiles. It acts as a safeguard against various issues that can cause the battery to malfunction. The Central Control Unit (CCU) and Local Control Unit (LCU) in the Battery Management System framework help improve system performance, safety, and cell management.

The primary task of Battery Management System for Electric Vehicles is to ensure the optimal use of the residual energy present in a battery.

The system continually checks the cells and battery pack in order to increase system efficiency and safety, for a variety of metrics. These parameters include

  • Over-Temperature
  • Under/Over Voltage
  • Under/Over Current
  • Charge (Capacity)
  • Power Consumption
  • Remaining Running Time
  • Charging Cycle
  • Battery Health

To improve the overall health of the battery system and cells, active/passive cell balancing functionality is built into the automotive Battery Management System architecture.

We, at Embitel, provide end-to-end development services for Battery Management System for Electric Vehicles. We believe in delivering quick, safe, and accessible solutions to support your role as a stakeholder in the EV ecosystem. Our experts at Embitel provide services and platforms to develop solution algorithm, including consulting, developing, and management services, with a goal of accountability for all aspects of the EV journey.

Interested to know more about our EV services? Get in touch with our consultants and get the details!

Let's Do It!

Battery Management System for Electric Vehicles – Basic Architecture and Block Diagram

We assist on custom design and developments of Battery Management Systems for all types of EVs (two, three and four wheelers)

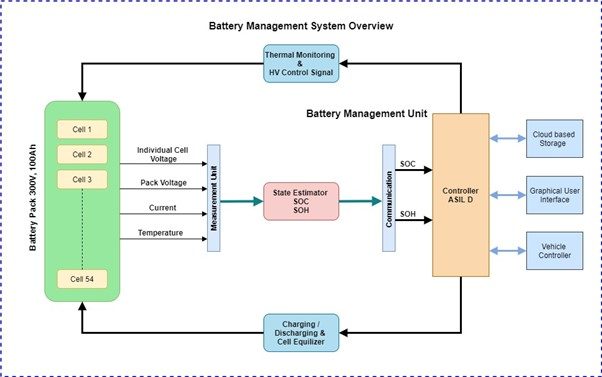

Basic Architecture and Block Diagram

Our Expertise Under Automotive Battery Management System

cell-parameter-sensing

Cell / Pack Parameter sensing

performance-evaluate

Performance evaluation

protection

Protection

cell-switching

Cell Switching

battery-optimization

Battery Optimization

communication

Communication

Dataevent-logging

Data & event logging

Highlights Under Battery Protection

Highlights Under Battery Protection
In the event of battery malfunctions like overcharging, undercharging, short circuits, overheating, etc., safety mechanisms must be deployed to keep the EV and its occupants safe and cool. For this, Embitel provides a variety of algorithms as part of the automotive Battery Management System solution that extend the battery’s lifespan and efficiency under stress.
current-protection
Polygon-1

Voltage and Current Protection

In order to detect Over-Voltage and Under-Voltage, EV Battery Management System actively monitors the voltage of each cell and the battery pack. The battery pack is protected from overcharging and over discharge via overcurrent monitoring

temp-measure

Temperature Monitoring

Each cell’s temperature is monitored in order to maintain excellent performance and efficiency while protecting the battery pack from overheating.

Temperature Monitoring

Each cell’s temperature is monitored in order to maintain excellent performance and efficiency while protecting the battery pack from overheating.

temp-measure
Polygon-2-1
cell-monitoring
Polygon 3

Cell Monitoring / Balancing

To avoid an imbalance in the charge levels of the individual cells that make up a battery, it is ensured that they are operated within their safe operating range. It monitors and responds to the State of Health (SoH), State of Charge (SoC), and Depth of Discharge (DoD).

relay
Polygon-1

Diagnostics and Relay Control

Relay control and diagnostics employ multiple-point voltage monitoring, fault monitoring, and continuous parameter monitoring to guarantee safe operation and dependable battery performance. Through the orderly execution of relay activities, the pre-charge function is integrated.

Optimized Charging and Discharging High

Optimized Charging and Discharging

High efficiency and cutting-edge features are offered by switch-mode power supplies (SMPS) for quicker and cooler charging.

Optimized Charging and Discharging High efficiency and cutting-edge features are offered by switch-mode power supplies (SMPS) for quicker and cooler charging.
Optimized Charging and Discharging High
Polygon-2-1
can-communication
Polygon 3
Isolated CAN Communication To improve efficiency and save costs, daisy chain communication between LCUs is used in the communication, which is CAN-based. Galvanically isolated CAN circuits provide dependable communication.
security-2
Polygon-1

Security

Authentication ICs offer reliable protection against duplicate goods. The usage of only approved accessories is validated. By doing this, user devices are less likely to sustain harm from duplicated inferior accessories or parts.

High Voltage Interlock (HVIL)

High Voltage Interlock (HVIL)

The HVIL function in electric vehicles detects aberrant high-voltage component disconnections and protects the system.

High Voltage Interlock (HVIL) The HVIL function in electric vehicles detects aberrant high-voltage component disconnections and protects the system.
High Voltage Interlock (HVIL)
Polygon-2-1
battery-isolation
Polygon 3

Isolation Measurement

Guarantees safety by keeping an eye on excessive voltage leaking into the vehicle’s body. Leakage resistance is monitored while the car is running and in ON mode.

Battery Management System for Electric Vehicles – Key Solutions by Embitel

Battery Management System for Electric Vehicles
  • Battery Charging Profile
  • Battery Power Management
  • Battery Pack Performance Management
  • Battery Cell Monitoring and Balancing
  • Battery Pack Interfacing, Diagnostics and Logging
  • BMS vs wBMS – Cyber Security and ISO26262 compliant services
